NEXTION NX4024T032 – Basic 3.2″ HMI TFT Intelligent LCD Applied to IoT or Consumer Electronics Field Touch Display Module

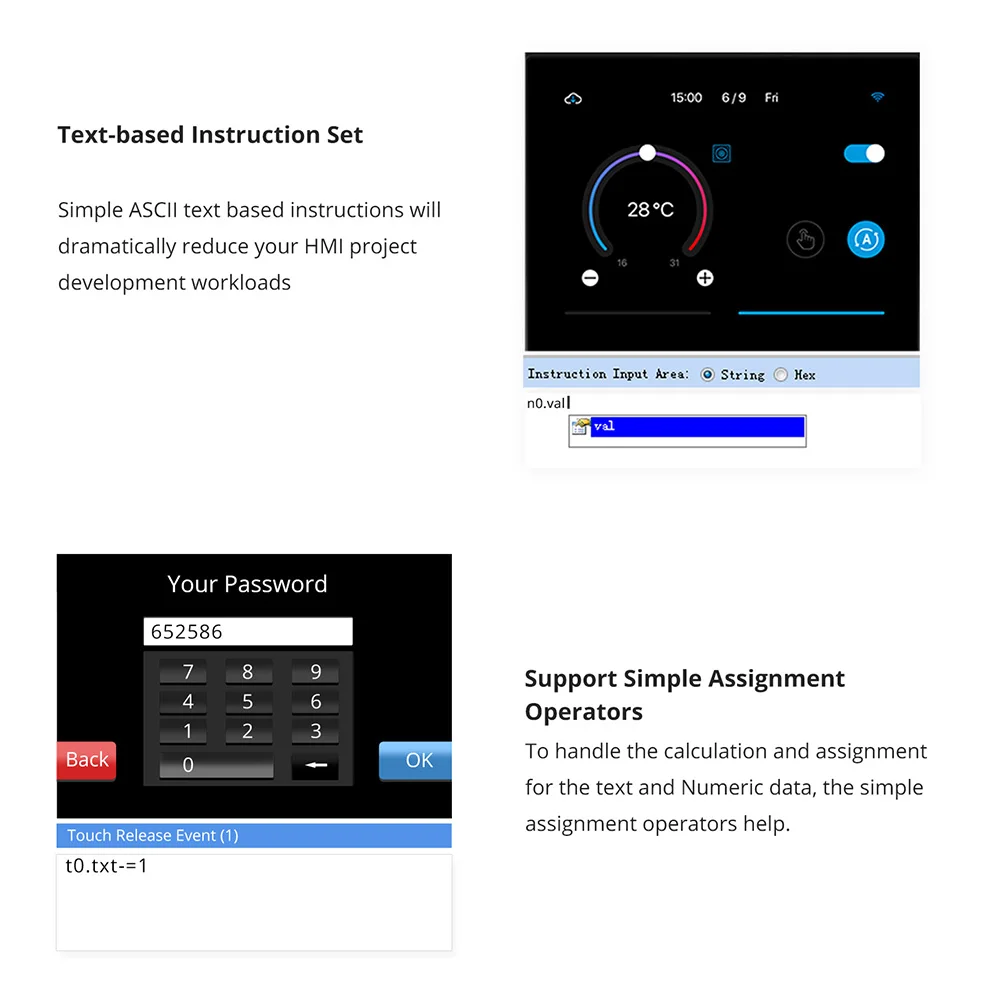

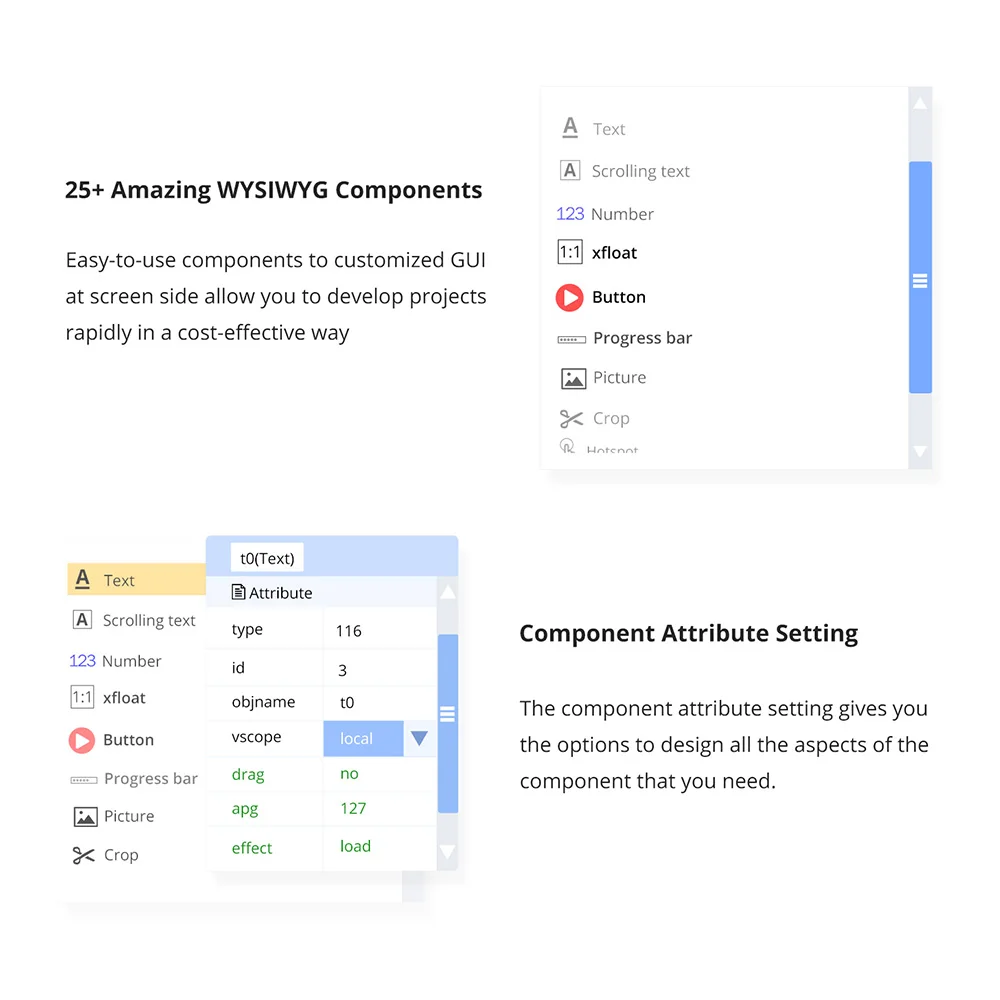

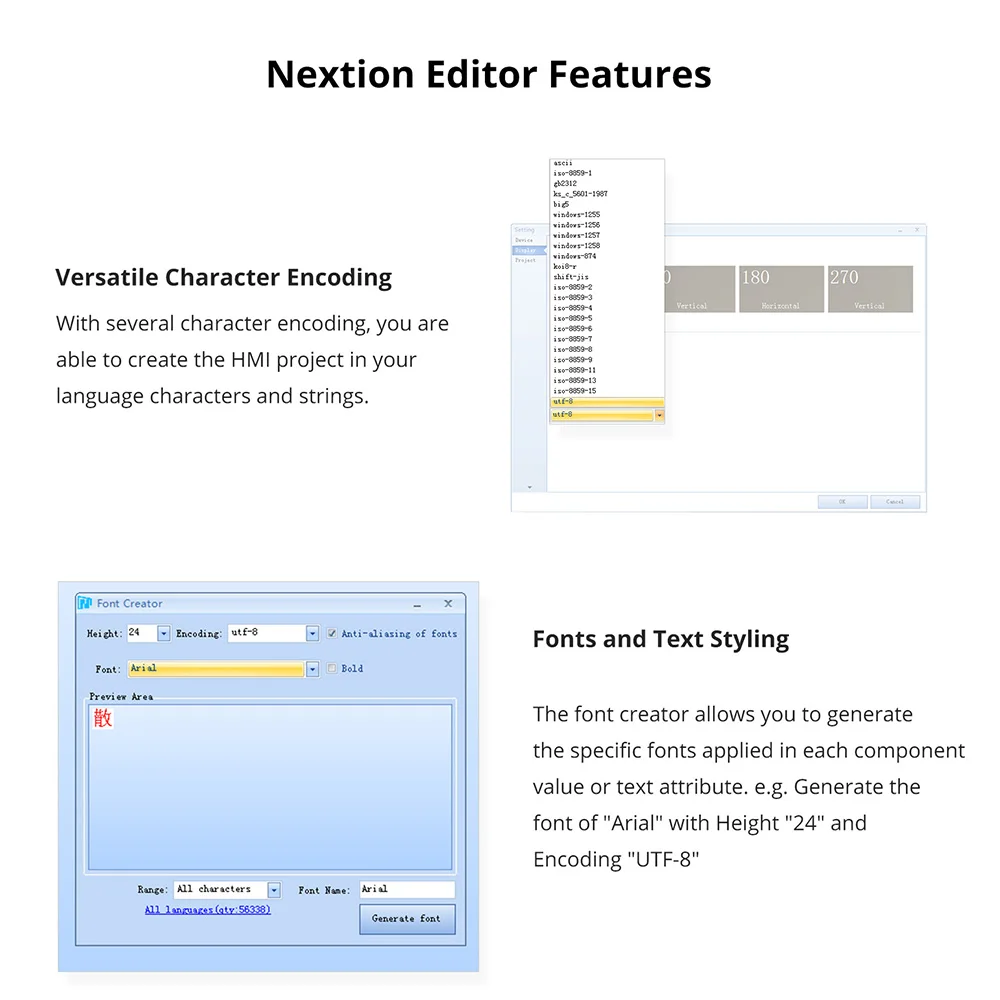

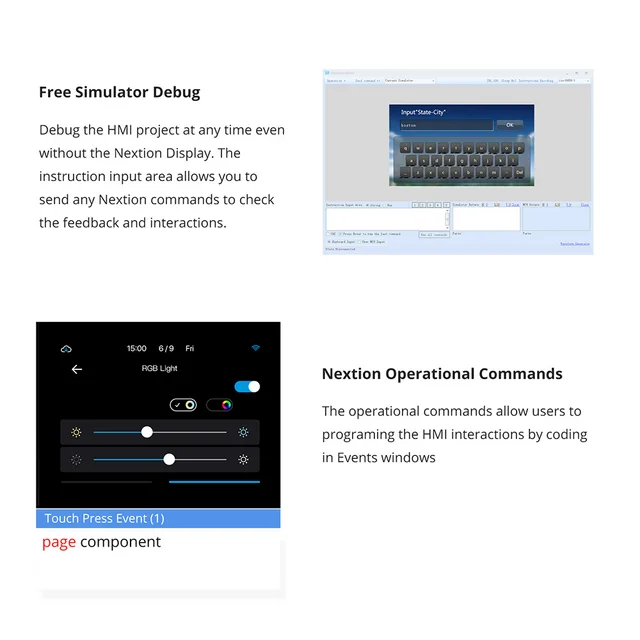

Nextion includes a hardware part (a series of TFT boards) and a software part. The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

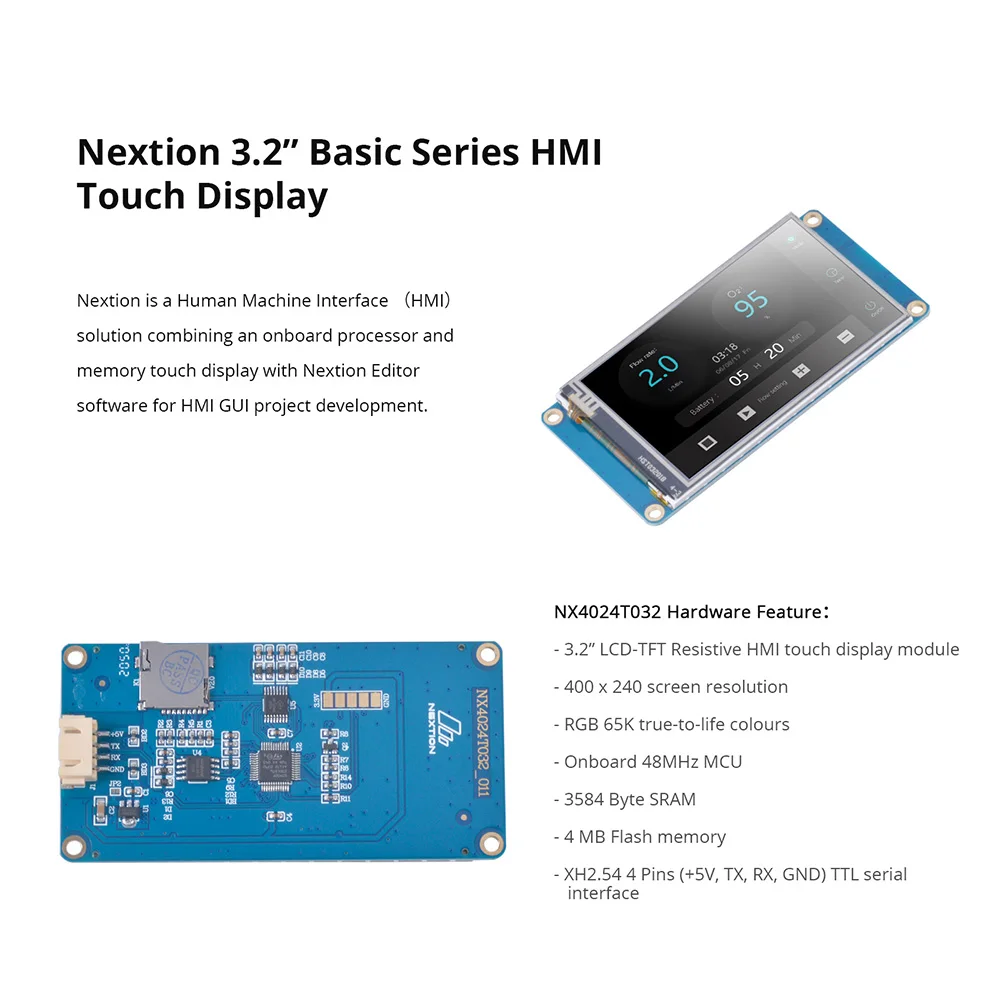

NX4024T032 is a powerful 3.2'' HMI, which is a member of Nextion family. Features include: a 3.2″ TFT 400×240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.
NOTE: Since we Optimized equipment EMC, the board may not be the same as before. More details, please check this link: //cdn.nextion.tech/wp-content/uploads/2020/08/NX4832K035-EMC-Certificate-Report.pdf
Product Specifications:
400 x 240 Resolution
RGB 65K true to life colors
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Data
On-board micro-SD card for firmware upgrade
Visual Area:69.60mm(L)times41.76mm(W)
Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
5V85mA power consumption
CE/EMC, RoHS certified
